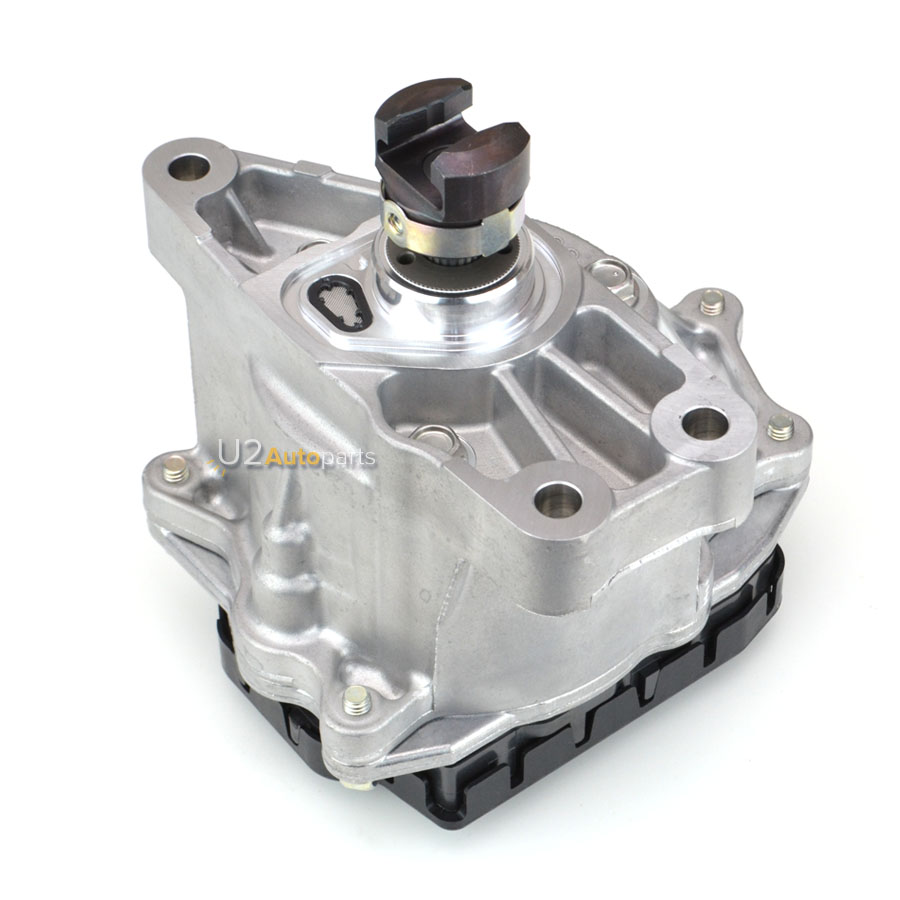

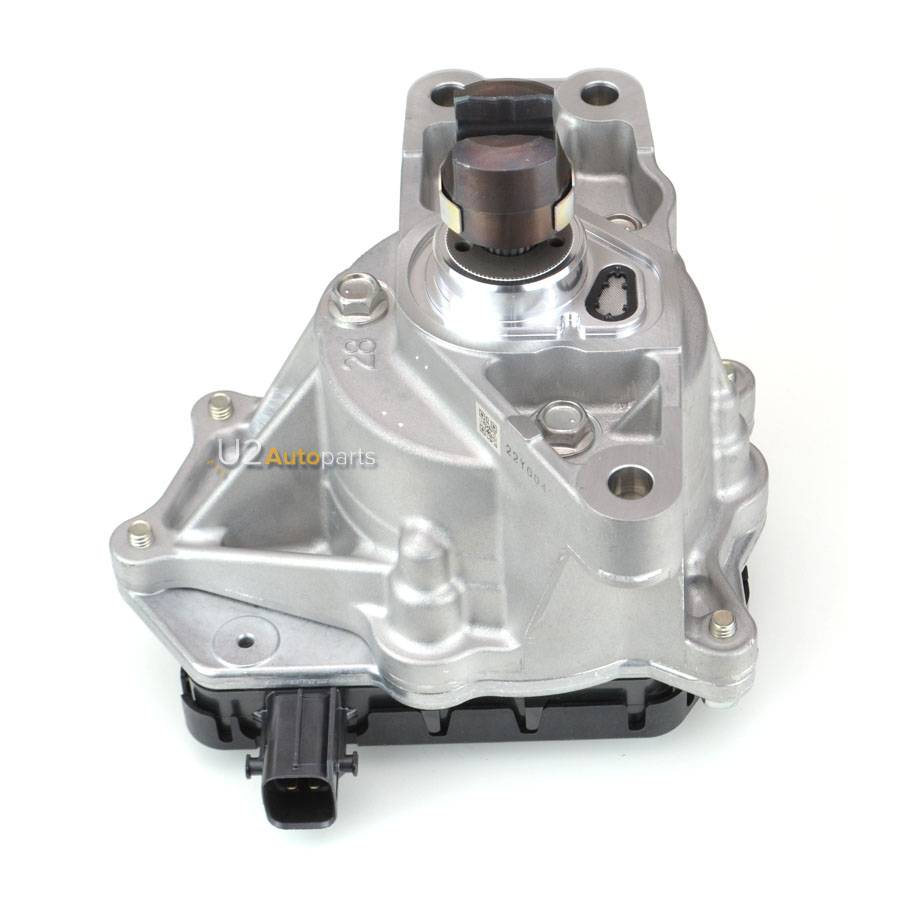

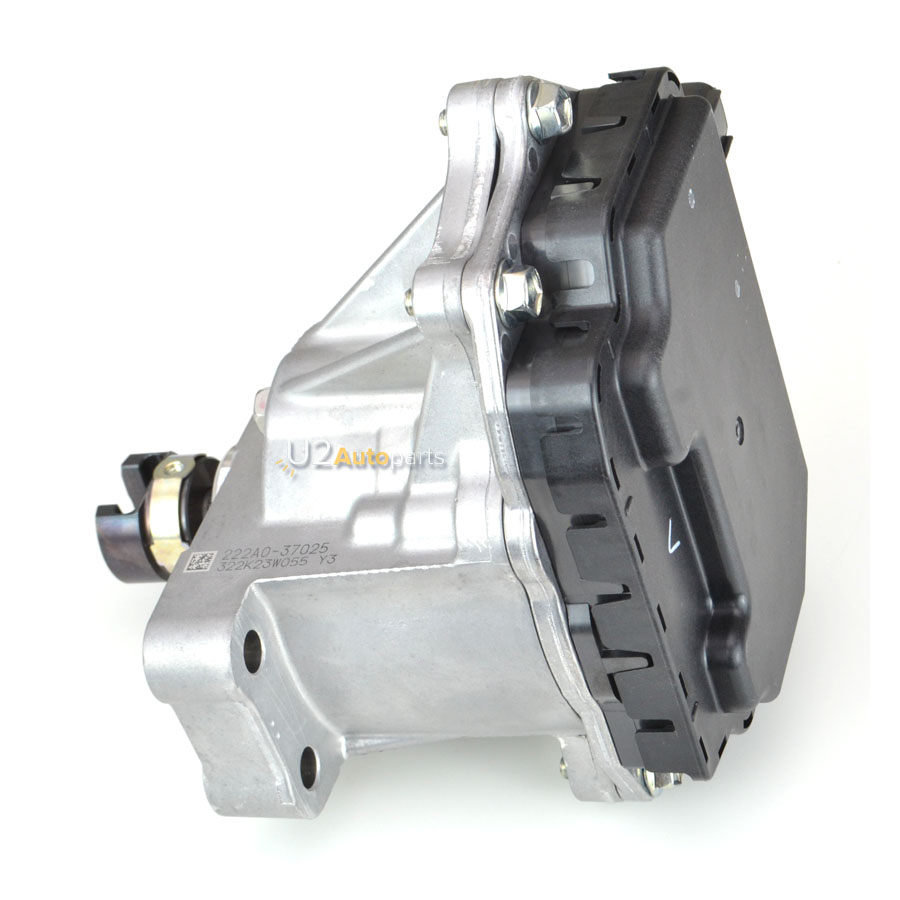

Variable Valve Controller Valvematic 222A0-37025 Toyota

Brand: Toyota
Part Number: 222A0-37025

Fits:

• Toyota Avensis
• Toyota Auris
• Toyota CH-R
• Toyota Corolla
• Toyota RAV4
• Toyota Verso
• with 1ZR-FAE, 2ZR-FAE, 3ZR-FAE engines

OEM-Number:

• 222A0-37013, 222A0-37014, 222A0-37015
• 222A0-37016, 222A0-37017, 222A0-37018
• 222A0-37019, 222A0-37020, 222A0-37021
• 222A0-37022, 222A0-37023, 222A0-37024
• 222A0-37025

Made in Japan!

The Valvematic controller is the electro-hydraulic actuator at the heart of Toyota's variable valve lift system. It continuously adjusts intake valve lift from 0.9 mm to 9.5 mm, allowing the engine to reduce pumping losses at part load and deliver full power when needed. A failed controller triggers fault code P1047, causing rough idle, loss of power and, in severe cases, a no-start condition. This is a genuine Toyota part for ZR-FAE engines. OEM reference: 222A0-37025.

If you are not sure that it'll fit your vehicle - send us its VIN code and we will check
